Model:

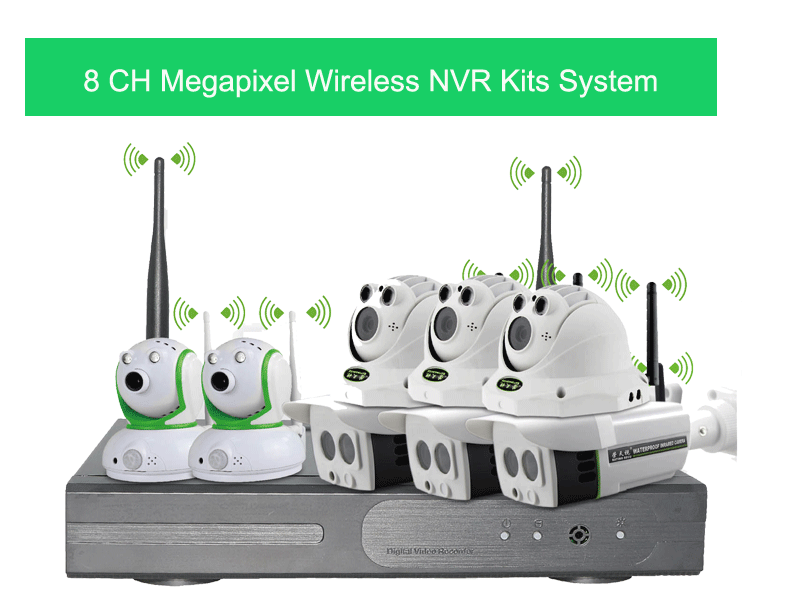

8CH 960P Wireless NVR kits 2.4GHz (Built-in router ,just plug and play)
DESPCRITION:
Main feature:

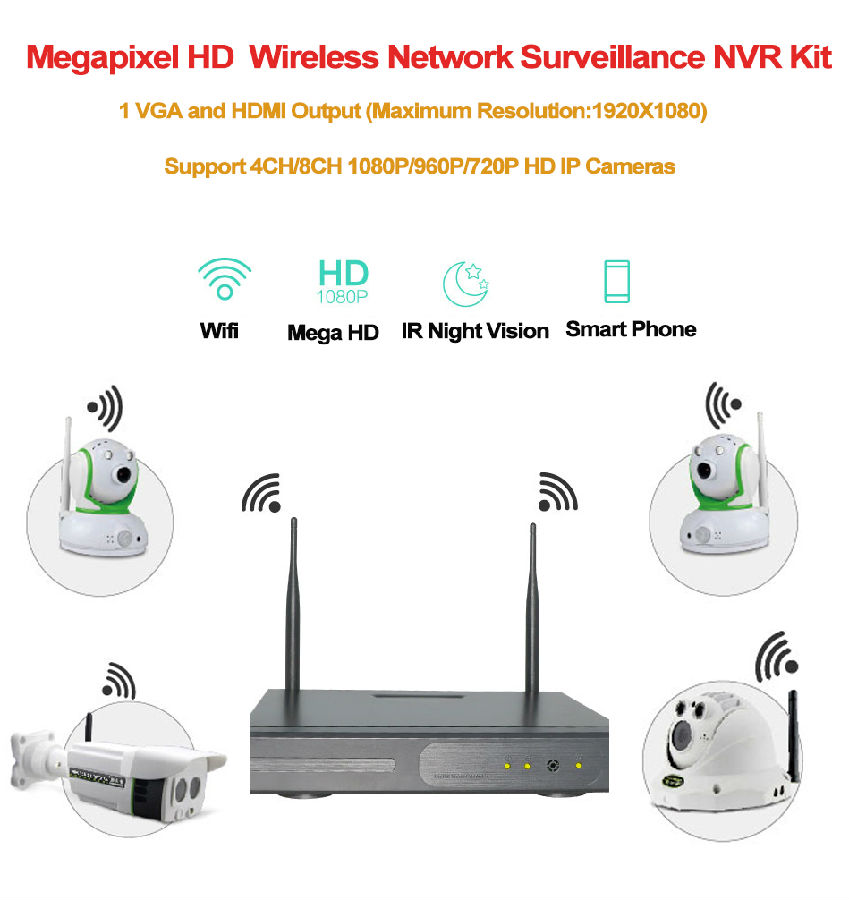

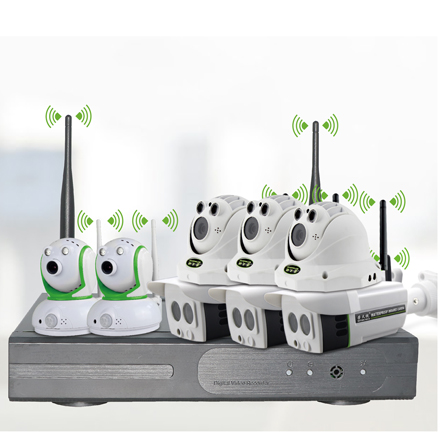

1. 8pcs 1.3Megapixel HD wireless IP camera + 1pc 8ch wireless HD NVR
2. Built-in high performance wireless router and 2 standard all round direction high
power antennas. Support 802.11b/g/n protocol,150Mbps

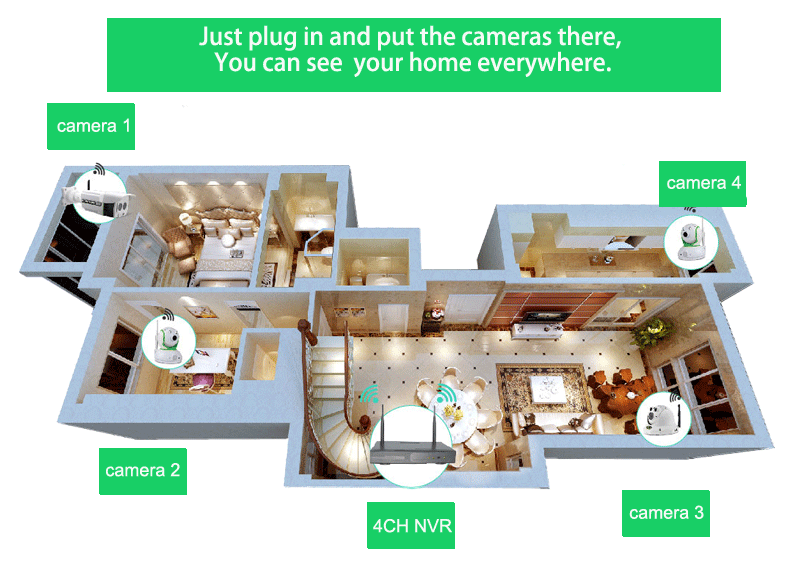

3. Connect NVR and camera automatically after plug in, don't need any setting or
operation
4. No need WIFI matching, with long transmission distance and stable performance,
free from interference of other WIFI devices.
5. Use specialized wireless connect technology , faster ,stabler and don’t interfere
with other wireless signal .

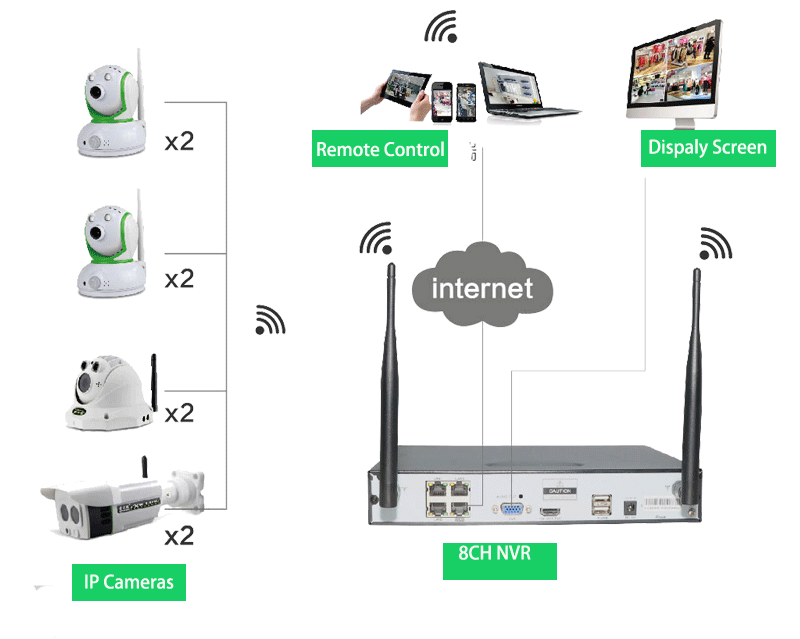

6. P2P remote monitoring enables remote viewing easily without any further setting.
7. PC,tablet and smart phone(including Android and IOS system) are available to
view locally and remotely

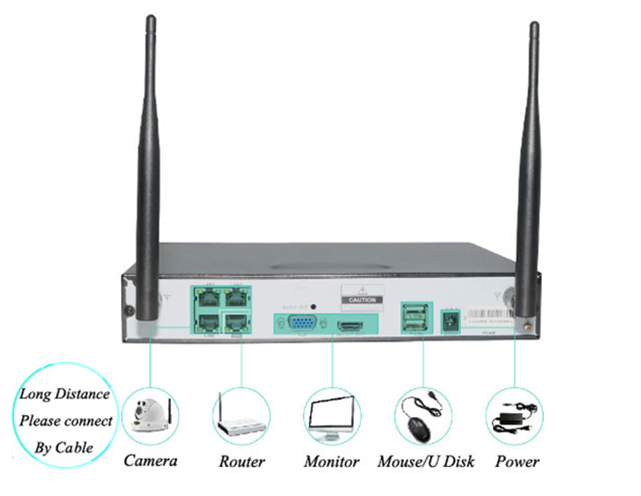

8. NVR has four RJ45 network interface ,one for network router, another three
interface for IP cameras when Distance more than 30meters .
9. Support one 4TB hard disk

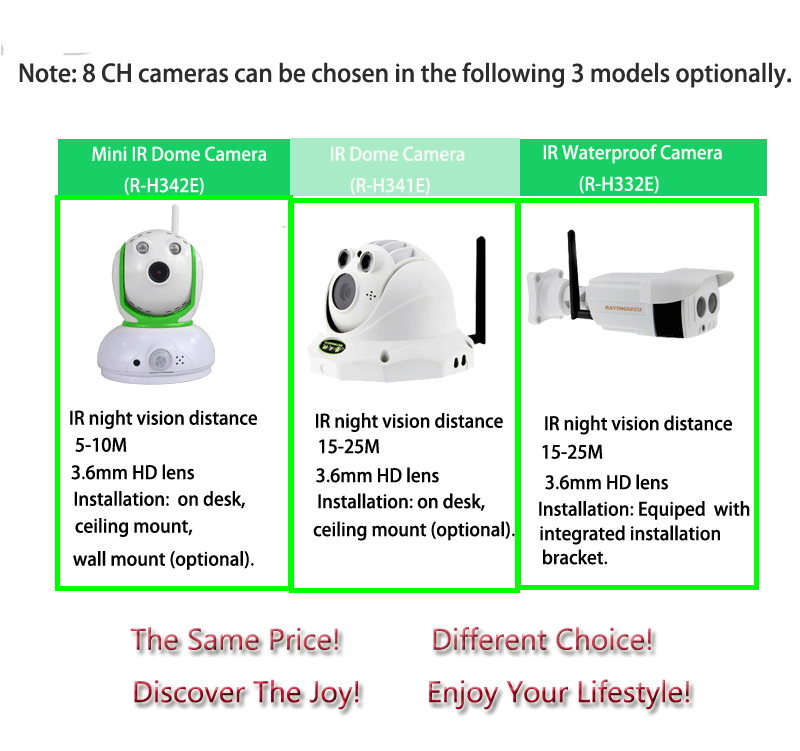

10. Three different camera case for optional ,all with IR_CUT dual optical filters, 3
megapixel HD lens ,SMD array IR LED, perfect IR night vision
11. Support 3D-DNR ,auto white balance ,auto electronic shutter ,AGC , sharpness .
12. Support ONVIF protocol , compatible with most of the manufacturer's major HD IP
cameras, can provide SDK .
13. Multi-languages and online upgrading supported.
8CH Wireless NVR Parameter Technology ：
Processor | Professiona Huawei hisilicon Industrial Processor | |
Operating System | Embedded Linux OS | |
Video In | Network Video In | 8CH |
| Network Bandwidth | 40Mbps |
Video Out | HDMI Out | 1 CH，Resolution：1024x768，1366x768， 1440x900,1920x1080p |
| VGA Out | 1 CH，Resolution：1024x768，1366x768， 1440x900,1920x1080p |
Video Coding Decoding Parameter | Video Resolution | 720P/960P |
| Sync Playback | 4 CH |
Recording | Record/Capture Mode | Manual,Schedule,Motion Detection, Alarm Trigger Mode |
| Playback Mode | Instant Playback,Regular Playback, Event Playback |
| Backup Mode | Regular Backup |
HDD | Type | 1*SATA Port |
| Max. Capacity | 4 TB HDD |
External Port | Network Port | 4*RJ45 10M/100M Self-adaptive network Ports,2*WIFI Ports |
| USB Port | 2*USB 2.0 Ports |
Network | Network Protocal | UPnP(Plug and On)、SMTP（Email）、 PPPoE、DHCP Etc. |
|
|
|
Others | Power Supply | DC12V 3A |
| Power (HDD-Excluded) | <5w |
| Working Temperature | -10°C ;--＋55°C; |
| Working Humidity | 10％--90％ |

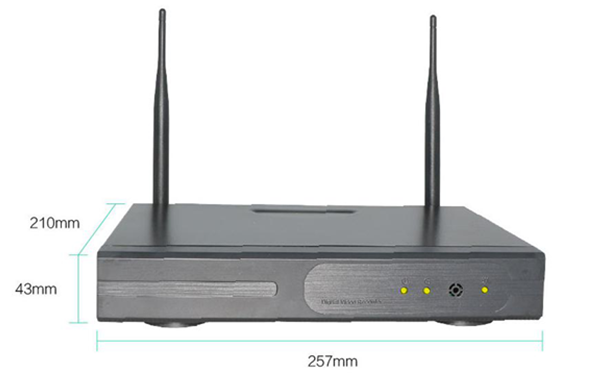

| Size | 257mm（L）X 210mm（W）X 45mm（H） |
| Weight （HDD-Excluded） | <1Kg |
Wireless WIFI IP HD Camera Technical Parameters：
Camera | Imaging sensor: | 1/3" Low illumination 1.3M CMOS |
Signal system: | PAL / NTSC adjustable | |
Scanning mode: | Progressive scanning | |
Illumination: | Color 0.2 lux, black & white 0.02 lux, IR on 0 lux | |
Lens: | Standard with 3.0 megapixel, 3.6/6/8mm fixed lens | |
Day and night switch: | IR-CUT dual optical filters auto switch in day and night | |
Electronic shutter: | Manual / auto ( adjustable, 1 / 25 ~ 1 / 4000 seconds) | |
White balance: | Auto / manual | |
DNR: | 3D-DNR | |
IR : | SMD array light source Finland LEDIL light lens | |
Effective night vision distance: | 10-20 meters | |
Standard compression | Main Processor | Huawei Hisilicon 3518E |
Image compression: | H.264 | |
Video bit rate: | 128 Kbps -- 8 Mbps; CBR / VBR adjustable | |
Audio compression: | G.711 / G.726 | |
Audio bit rate: | 64 Kbps (G.711) / 16 Kbps (G.726) | |
Image | Max image size: | 1280 x960 |
Frame rate: | 1280 x 960 @ 30 fps; 1280 x 720 @ 30 fps; 640 x 360 @ 25 fps; 352 x 288 @ 25 fps | |
Image adjustment: | Through IE can adjust Saturation, brightness, contrast, sharpness | |
Image mirroring: | Horizontal mirroring, vertical mirroring | |
Scene: | Auto, indoor, outdoor | |
Function | Wifi: | Standard Wifi Module+Antenna |
Interface protocol: | ONVIF | |
Support protocol: | TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6, Bonjour (SIP, SRTP optional) | |
Interface | Communication interface: | 1pc RJ45 10M /100M Adaptive Ethernet port |
Basic Parameter | Power input: | DC 12V±10% |
Work environment: | -35℃ - 60℃ Humidity is less than 95% (no condensation) |

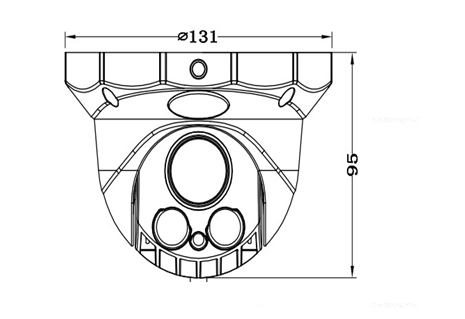

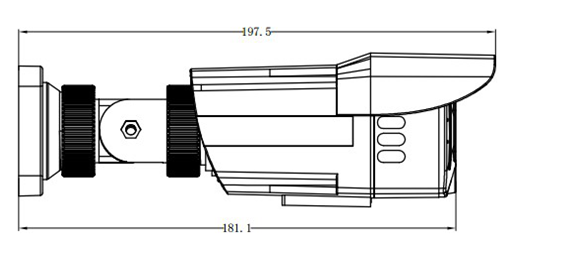

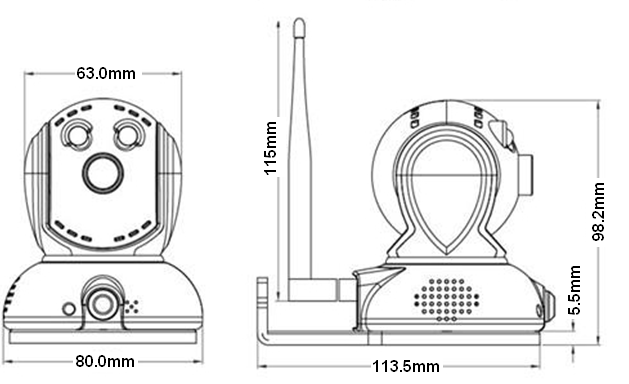

Products Size :
