4CH NVR Kits Wireless Cameras for Indoor Home Security System KITS B

Model:

4CH NVR Kits Wireless Cameras for Indoor Home Security System KITS B

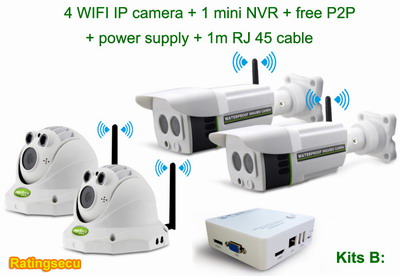

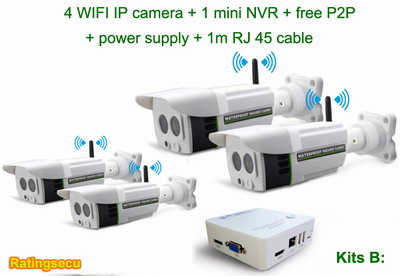

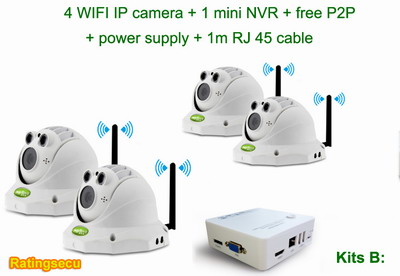

* 4 wireless IP IR cameras + 1 Mini NVR + free P2P + power supplies + 1m RJ 45 cable for test.
* Suitable for indoor home security system.
* 4 Wireless cameras optional of dome camera or bullet camera.
* ONVIF, use free P2P / NVR clients to control, support smart phone APP, remotely surveillance.

DESPCRITION:

RatingSecu        4 CH Mini NVR Kits

Molde: Kits B

4 wireless IP IR cameras (domr camera / bullet camera) + 1 Mini NVR + free P2P + power supplies + 1m RJ 45 cable for test







Main information:



* Professional design for home / shop / office, etc. Private mold, applying for patent.


* Small, beautiful, easy use, remotely view your cared areas online, wherever you are.


* Plastic + aluminum alloy structure with excellent heat dissipation.


* IR can works 24 hours continuously.


* Chipset: Hisilicon 3518 coding & ISP, H.264 compression. 25 frames, real time 720P, dual streams, built-in WEB, support ONVIF.


* Camera: Wireless, 1/4" 1.0 megapixel HD CMOS, resolution: 1280x720, 0.05LUX low illumination. Use 3.0 Megapixel HD lens, IR dome camera -- 3.6mm lens, IR bullet camera -- 4mm lens.


* Can choose 4 cameras be  dome cameras / be bullet cameras, cost same.


* Packing size: 43 X 33 X 13cm, G.W.: 3 KGS.



--  4CH NVR Kits B details of camera & NVR & P2P:



720P WIFI IR dome camera:



-- IR_CUT dual optical filters auto switch.  2pcs imported SMD array IR LED (Finland LEDIL light lens), effective IR night vision distance 5-10m, excellent performance in dark environment.



--3.6mm lens.   Size: 131mm (Dia) x 95mm (H)



720P WIFI IR bullet camera:



-- IR_CUT dual optical filters auto switch.  1pcs imported SMD array IR LED (Finland LEDIL light lens), effective IR night vision distance 5-12m, excellent performance in dark environment.



-- With standard wall mount bracket, can choose rotating bracket (extra cost).


-- 4mm lens.  Size: 125mm (L) x 55mm (W) x 50mm (H)



Mini NVR:

-- Support 4CH 1080P or 4CH 720P; Playback resolution: 4CH 720P or 1CH 1080P.


-- Can not use internal hard disk, only can use external USB hard disk or mobile hard disk, E-SATA hard disk.


-- Without RS 485 interface.


-- Interface: HDMI X 1, VGA X 1, USB X 2, 100M RJ45 X 1.


-- Power supply request: DC5 V / 2 A.  Size / Weight: 88 x 88 x 32 mm / 1.7 kg.



Free P2P:

-- P2P remote surveillance turn on by ONE PUSH, no need UPNP, no need port mapping NAT, ONE PUSH to search all IP camera ID in the local area network, distribute them to independent channel, no need to manually set IP.


-- Smart phone clients support Iphone, Ipad, Android.


-- Computer system: windows 2003 server / windows 2008 server / windows xp / windows 7 / windows 8 32 bit system / 64 bit system.


-- 7 languages, can be used in almost all countries.
