Model:

wireless indoor pan tilt IP dome camera support POE

*Free P2P,support smart phone, PC ,tablet PC remote monitoring view
*H.264 compression ,25/30 frames ,real time HD, 3streams
*Resolution :1920x1080p,1280x960p,1280x720p
*Pan and Tilt rotating
*2.8-12mm motorized zoom lens or fixed lens
*IR_CUT dual optical filters for day / night
*Support WIFI ,TF card slot, audio,speaker,POE functions

DESPCRITION:

Main feature:‍

（1）Professional design for HD network camera, small, beautiful and delicate, best for home security.
（2）Material: aluminum alloy + plastic, innovative patented heat dissipation structure, make HD camera
     can works well under high temperature
（3）3 models: 2.4 megapixel, 1080P progressive scan; 1.3 megapixel, 960P progressive scan; 1.0
     megapixel, 720P progressive scan.

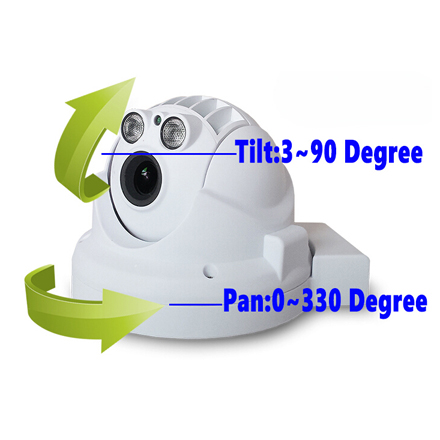

（4）Horizontal 330° rotation, rotate speed 30° / second, vertical 3° - 90° rotate, speed 20° / second.
（5）Preset position with 64 pcs programmable, 4 tour scan routes, 2 points scan.
（6）Scan speed & manual control rotate speed & preset stay time are adjustable.
（7）Will not lose internal data when power off, can manual control IR LED turn on / off.
（8）Advanced digital signal processing technology, high brightness imported SMD IR source, show the
     best HD video effects in both day and night environment.
（9）3.0 megapixel HD lens + IR-CUT auto switch in day and night, 3.6mm, 6mm,8mm fixed lens ,
     2.8-12mm/6-22mm motorized zoom lens optional.
（10）Support 3D DNR, digital WDR,auto white balance, auto electronic shutter, auto electronic gain, real
      color reproduction, high resolution image.
（11）Wireless design, DC power interface + RJ45 network interface, easy for installation and use.
（12）Optional function : External WIFI ,TF card Slot, audio pick-up ,POE.
（13）Support ONVIF protocol, can provide the SDK.
（14）Build-in WEB browse software.
（15）Free P2P for remote surveillance.

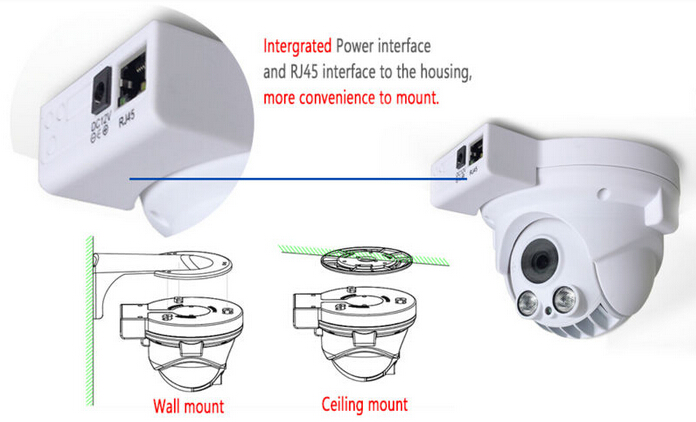

（16）Installation method: wall mount / ceiling mount / stand on desk.
（17）Size: 131(DIA) x 95 (Height) mm. Packing: 22x18x18 cm / GW: 800g include power supply.

Optional back-end products for the system:

IE browse software, P2P HD remote monitoring management software (one key realize remote control without complicated settings), Embedded HD NVR, NVR control keyboard, CMS HD network surveillance platform management software, High-definition surveillance analysis software.

Technical parameters：

Model:		R-N400A1 (720P)	R-N400A3 (960P)		R-N400A5 (1080P)
Camera	Imaging sensor:	1/4" CMOS progressive scan	1/3" CMOS progressive scan		1/2.8" SONY progressive
	Signal system:	PAL / NTSC adjustable
	Scanning mode:	Progressive scanning
	Illumination:	Color 0.2 lux, black & white 0.05 lux, IR on 0 lux	Color 0.2 lux, black & white 0.02 lux, IR on 0 lux		Color 0.2 lux, black & white 0.02 lux, IR on 0 lux
	Lens:	Standard with 3.0 megapixel, 3.6, 6 ,8mm fixed focus, optional CS lens ,optional 2.8-12mm motorized zoom lens
	Day and night switch:	IR-CUT dual optical filters auto switch in day and night
	Electronic shutter:	Manual / auto ( adjustable, 1 / 25 ~ 1 / 4000 seconds)
	White balance:	Auto / manual
	DNR:	3D-DNR
	IR source:	2pcs SMD array light source+ Finland LEDIL light lens
	Effective night vision distance:	25-35 meters
Standard compression	Image compression:	H.264
	Video bit rate:	128 Kbps -- 8 Mbps; CBR / VBR adjustable
	Audio compression:	G.711 / G.726
	Audio bit rate:	64 Kbps (G.711) / 16 Kbps (G.726)
Image	Max image size:	1280 x 800	1296 x 976		1984 x 1225
	Frame rate:	1920 x 1080 @ 30 fps; 1280 x 960 @ 30 fps; 1280 x 720 @ 30 fps; 704 x 576 @ 25 fps; 640 x 360 @ 25 fps; 352 x 88 @ 25 fps
	Image adjustment:	Through IE can adjust Saturation, brightness, contrast, sharpness
	Image mirroring:	Horizontal mirroring, vertical mirroring
	Scene:	Auto, indoor, outdoor
	Digital enlarge:	Can achieve through NVR, P2P HD monitoring management software
Function	Storage:	Support TF card storage
	Interface protocol:	ONVIF
	Support protocol:	TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6, Bonjour (SIP, SRTP optional)
	Intelligent alarm:	Motion detection, mask alarm, network cable break , IP address conflict, storage card is full, storage device is wrong
	Audio pickup:	Can add internal audio pickup, also support external audio pickup
	POE power supply:	Support POE power supply (optional), internal and external type
	WIFI:	Support WIFI function (optional)
Interface	Communication interface:	1pc RJ45 10M / 100M Adaptive Ethernet port
Basic parameter	Power input:	DC 12V±10% / POE
	Power consumption:	1W (IR off) / 5.5 W (IR on)		1.1 W / 5.6 (IR on)
	Work environment:	-35℃; - 60℃, humidity is less than 95% (no condensation)
	Size:	Diameter131mm x height 95mm

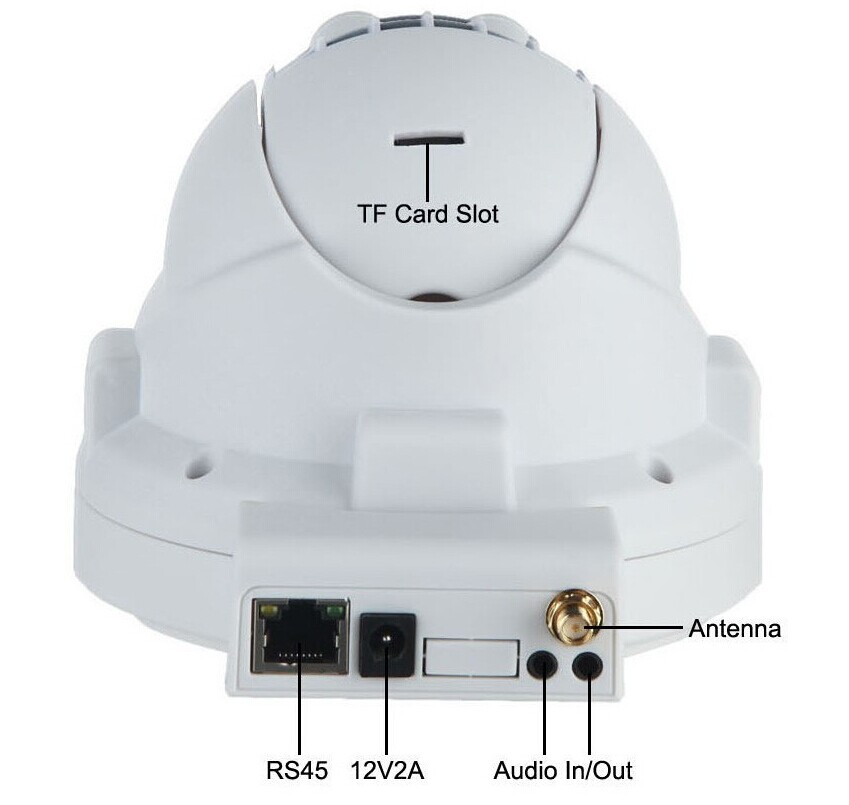

interface

mount
